S1-BMW52-OCC KIT
Home > Products > S1-BMW52-OCC KIT
| S1-BMW52-OCC KIT | |
|---|---|
| ROUTING TYPE | Closed Loop |
| BODY STYLE | Single Tank |
| CYLINDER SIZE | 2.5" OD x 6" TALL |
| TARGET VEHICLE | Various BMW E36,E46,E90 |
| HOSE SIZES | 5/8" ID w/ Adapters |
| INSTALL DIFFICULTY | Easy to Moderate |
| COST (plus postage) | $205.00 USD | GENERAL INFORMATION |
|
This is an OCC & hose kit bundle for various early model BMW applications.
The custom hoses included make this a BMW specific install and they have connectors which push on and lock into the factory valve cover & oil separator fittings. The S1-OCC that is included is fabricated with 5/8" OD fittings for a simple push-on connection with clamps. This OCC includes the Saikou Michi internal baffle design. |

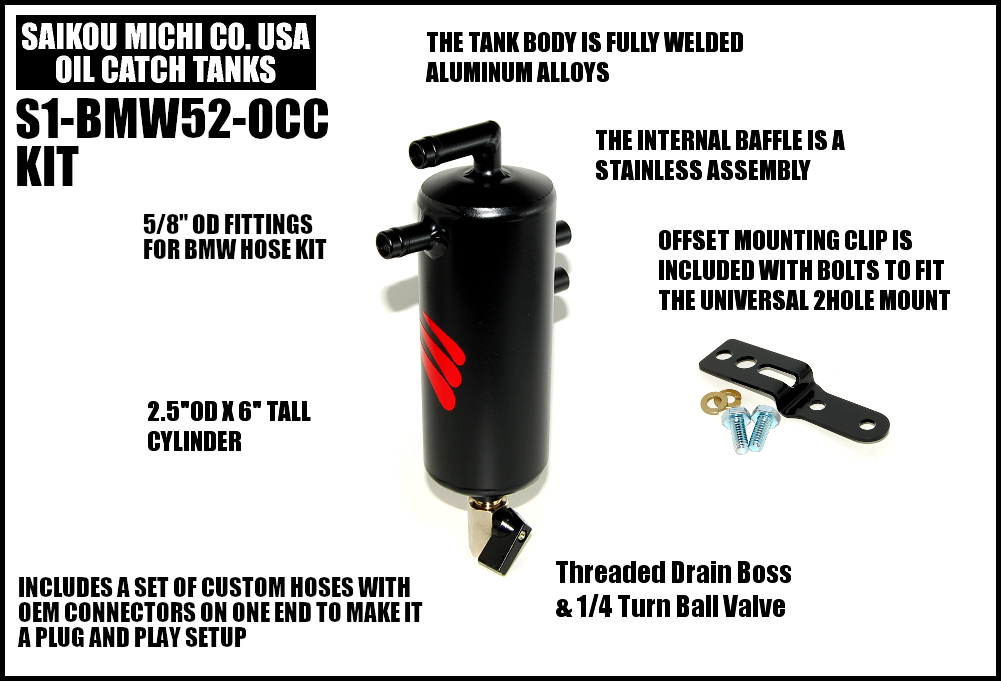

INCLUDED IN THIS KIT |
|
1) S1-OCC w/ 5/8" OD fittings 2) 1/4 Turn Ball Valve 3) Universal mounting clip & bolts 4) 3ft SAE hose section w/ 45deg OEM adapter 5) 3ft SAE hose section w/ 90deg OEM adapter 6) 2 Hose clamps |
CAD DRAWING |
| S1-BMW52-OCC CAD DIMENSIONS (PDF) | INSTALLATION NOTES |
| This kit works with engines that have 19mm quick connectors on the valve cover and the oil separator assembly (common). For typical BMW installs, the Valve Cover PCV vent connection reroutes to the OCC Inlet, and then the OCC Outlet is connected to the Oil Separator Return fitting. The factory vent hose is essentially replaced by the supplied hoses with the OEM style connectors and the OCC is added to the routing to provide filtering and a reservoir for blow-by fluids. The OCC is mounted where it is most convenient in your specific engine bay, as this kit is used on various BMW models. | RECOMMENDED OPTIONS |
|
1) 1/4 Turn Ball Valve (included) 2) Drain Extension kit 3) Stock color choices: Satin Black, Glossy Black, Glossy Red, Dark Blue, Bare Brushed Aluminum. |
REFERENCE PHOTOS |
|

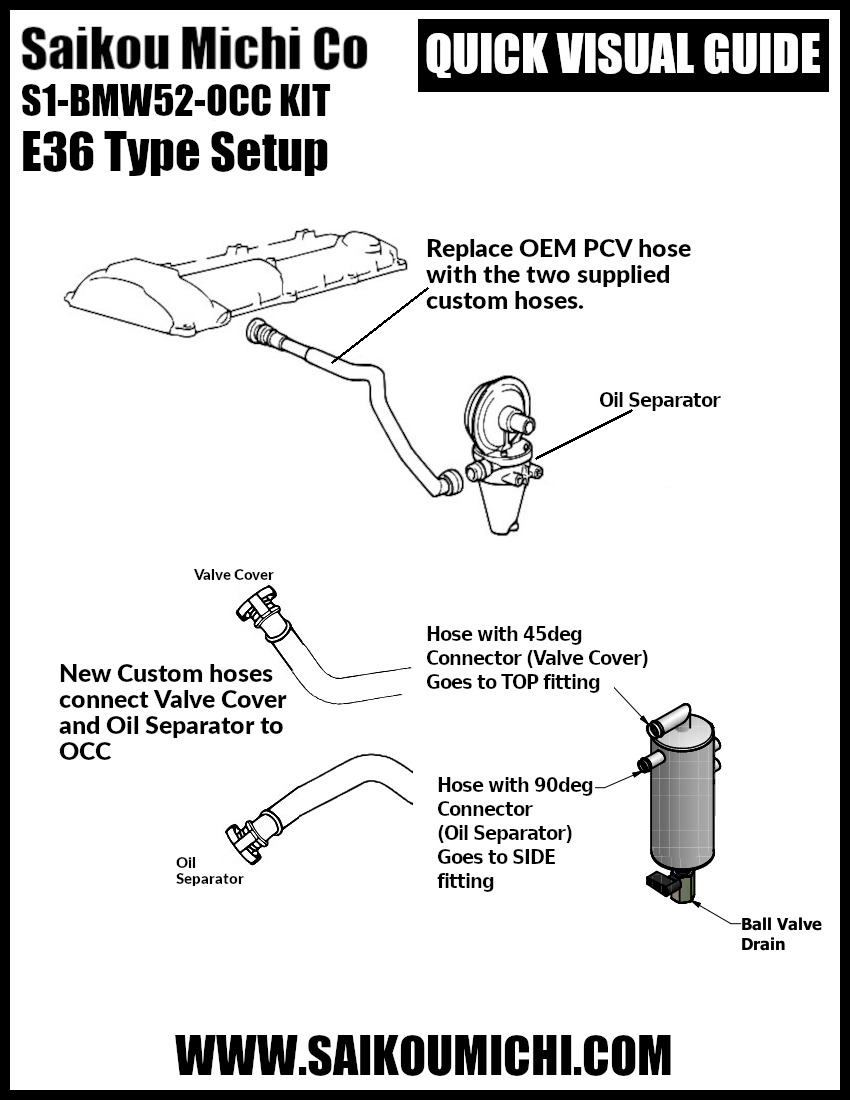

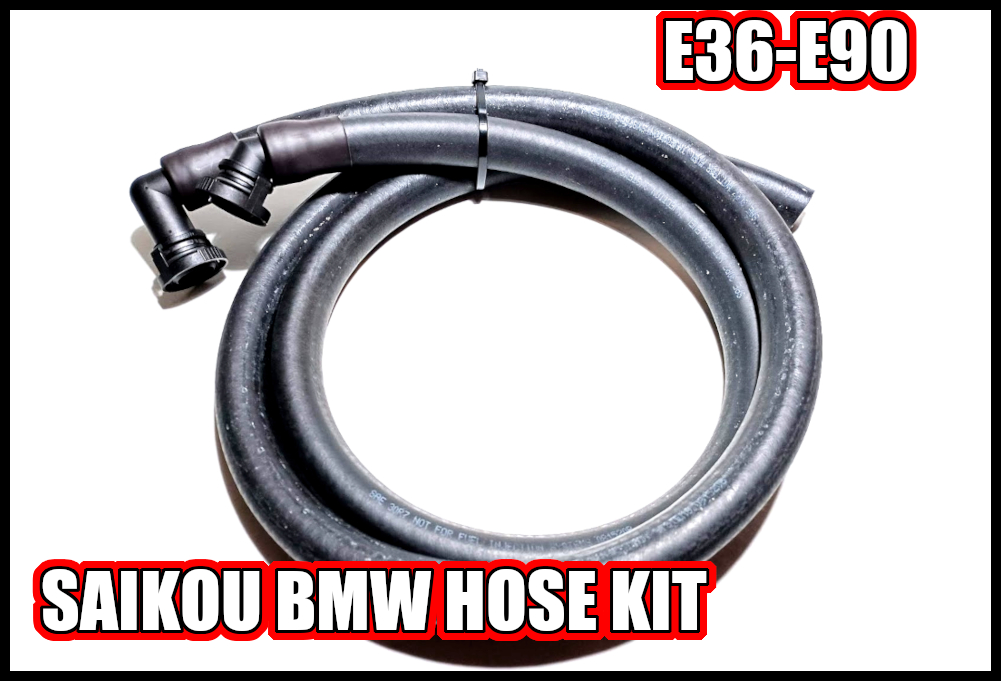

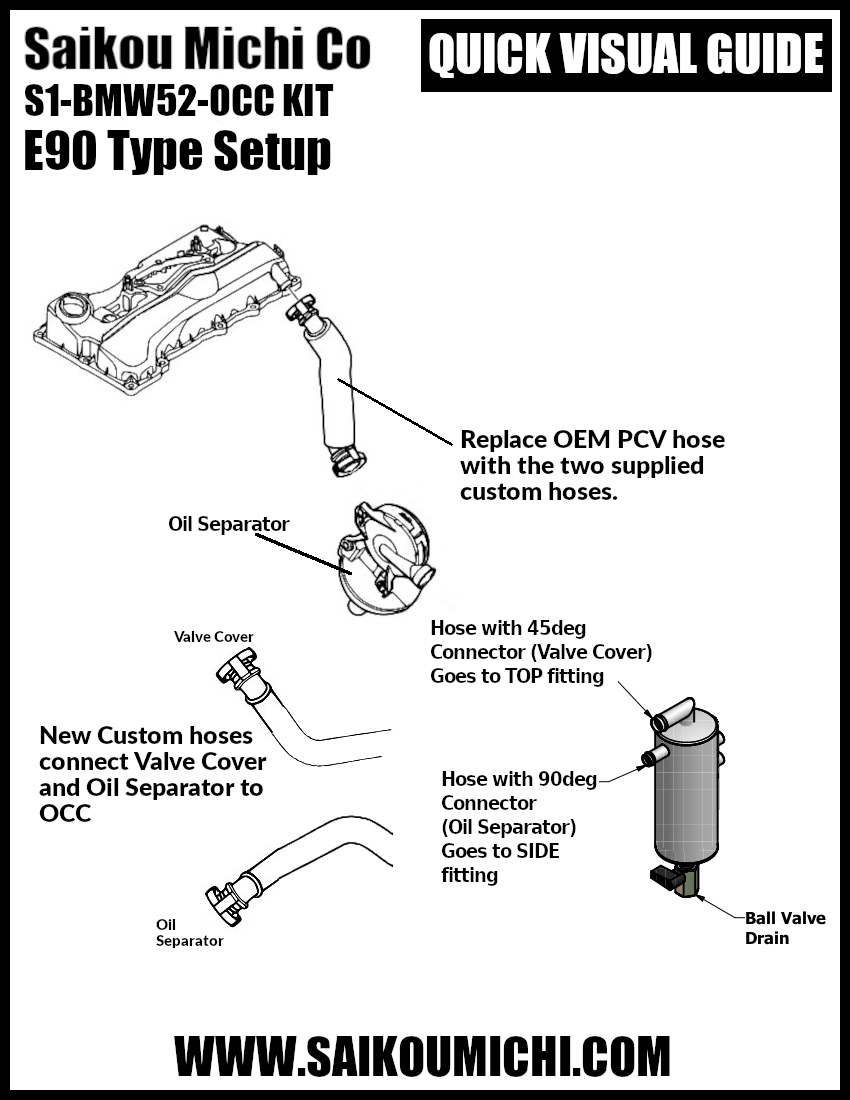

CUSTOM BMW HOSE KIT SAMPLE E36 VISUAL GUIDE SAMPLE E90 VISUAL GUIDE SAMPLE PICS NOT READY |
|

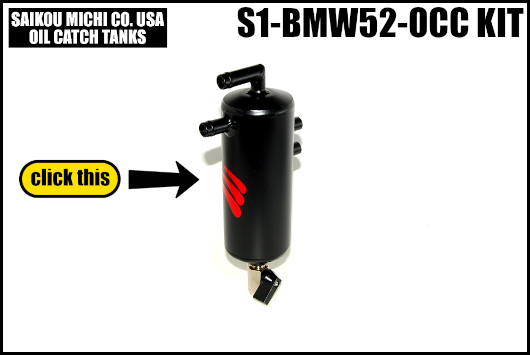

CLICK FOR FULLSIZE
1/4 TURN
BALL VALVE
OEM TYPE
HOSE ADAPTER
MOUNTING
CLIP INCLUDED
DISCLAIMER:
All our products are simple filters and are not intended to modify the PCV system, this does not mean that local authorities will understand this. You are responsible for upholding local statues and keeping your vehicle legal. This product may be considered for "Offroad Use Only", please check your local statutes.
WARNING:
Working on any vehicle may be hazardous and result in injury. These products must be installed by a qualified technician. You must be qualified or seek the help of a professional mechanic. If you are not sure about how to connect this filter, have a professional mechanic perform the installation. Keep all hoses away from hot surfaces, if you are not sure of the routing, have a professional mechanic perform the installation. You are responsible for the safe and proper installation of this filter product.
