SAIKOU MICHI CO. USA

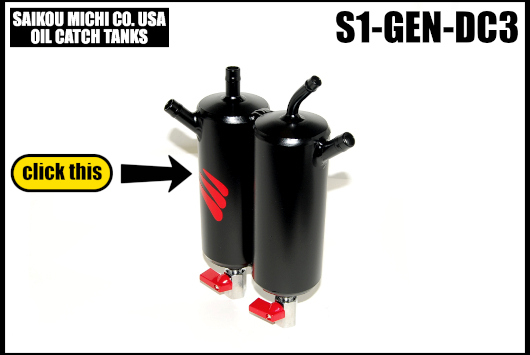

S1-GEN-DC3 FULL KIT
| S1-GEN-DC3 KIT | |
|---|---|
| ROUTING TYPE | Closed Loop |
| BODY STYLE | Dual Tanks |
| CYLINDER SIZE | 2.5" OD x 6" TALL |
| TARGET VEHICLE | Hyundai Genesis 2.0T |
| HOSE SIZES | 3/8" & 1/2" |
| KIT CATEGORY | Moderate To Advanced |
| COST (plus postage) | $$$ | GENERAL INFORMATION |

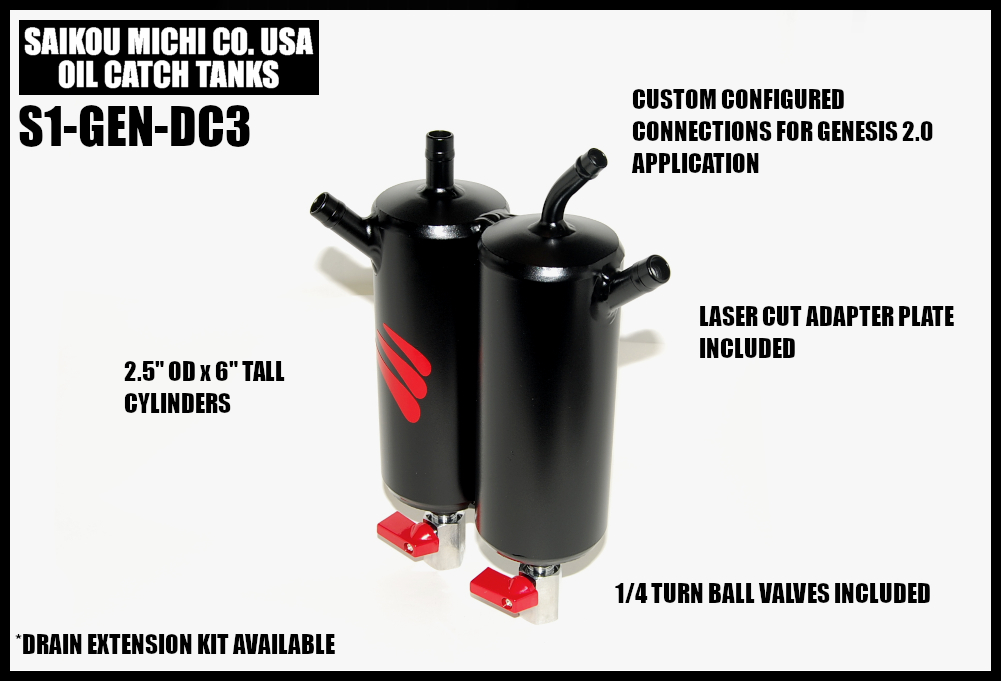

| This is the Dual tank setup for the Hyundai Genesis 2.0. The most popular configuration and accessories are included in this bundle. The tank has a separator cylinder for each side of the PCV system. One for the PCV and one for the Crankcase on the fresh air side. Both cylinders have internal baffle assemblies. This custom setup includes an adapter plate which uses factory bolt locations to hold the tank in place. Port fittings are sized to match the engine connections. This model will require work above and below the vehicle so it is a intermediate level install. Drain Extensions make opening the valves easier since you can reach them from underneath the vehicle. Matched hoses and clamps are included as described below. |
INCLUDED IN THIS KIT |
|
1) Genesis 2.0 adapter plate 2) Dual Drain Extension kit 3) 1/4 Turn Ball Valves 4) Pre-cut Hose blanks & clamps |
CAD DRAWING |
| GENESIS 2.0 CAD DIMENSIONS (PDF) | INSTALLATION NOTES |
| As this is an intermediate level kit, you should be prepared with the proper tools, and equipment that will allow you to work above and below the engine compartment. The target mounting point is hidden underneath. You need to be aware of safety procedures and be experienced with the installation of engine components. Genesis forum members have provided information and created video tutorials covering important topics. We will be happy to provide links to informational DIY posts. | RECOMMENDED OPTIONS |
|
Popular options are already included but you do have some color choices: 1) Stock color choices: Satin Black, Glossy Black, Glossy Red, Dark Blue, Bare Brushed Aluminum. |
REFERENCE SAMPLES |

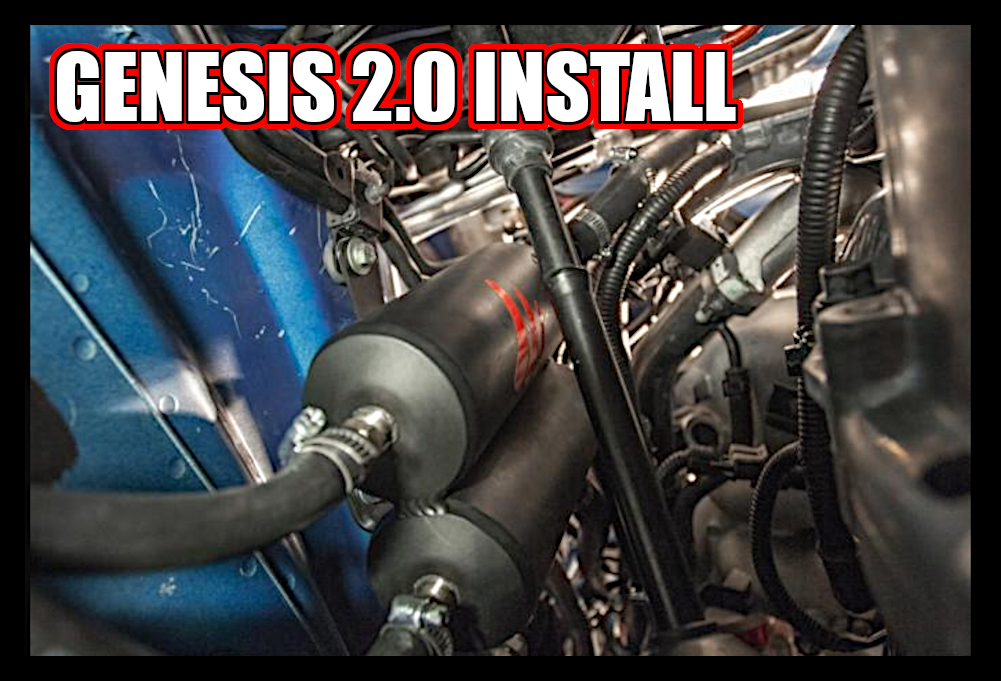

| INSTALL PIC | |
CLICK FOR FULLSIZE
2.0 ADAPTER
PLATE
BARBS FOR
DRAIN EXT.
DUAL DRAIN
ASSEMBLY
DISCLAIMER:
All our products are simple filters and are not intended to modify the PCV system, this does not mean that local authorities will understand this. You are responsible for upholding local statues and keeping your vehicle legal. This product may be considered for "Offroad Use Only", please check your local statutes.
WARNING:
Working on any vehicle may be hazardous and result in injury. These products must be installed by a qualified technician. You must be qualified or seek the help of a professional mechanic. If you are not sure about how to connect this filter, have a professional mechanic perform the installation. Keep all hoses away from hot surfaces, if you are not sure of the routing, have a professional mechanic perform the installation. You are responsible for the safe and proper installation of this filter product.
