S1-FRS/BRZ Dual Tank
| S1-FRS/BRZ-DC3 | |
|---|---|
| ROUTING TYPE | Closed Loop |
| BODY STYLE | Dual Tanks |
| CYLINDER SIZE | 2.5" OD x 6" TALL |
| TARGET VEHICLE | Scion FRS, Subaru BRZ |
| HOSE SIZES | 3/8" & 1/2" |
| KIT CATEGORY | Easy To Moderate |
| COST (plus postage) | $$ | GENERAL INFORMATION |

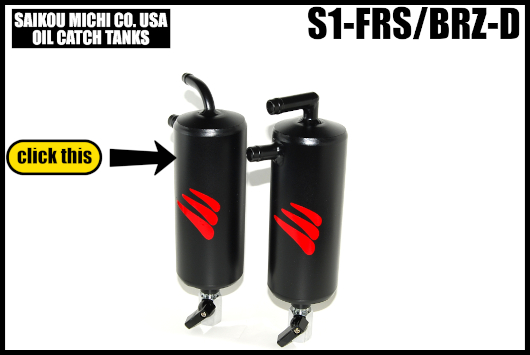

| Two tank set for Scion & Subaru applications. Includes a cylinder for the PCV and Crankcase side. Internally baffled to filter out the gunk. Custom configured for easy routing with fitting sizes to match the engine connections. Each tank includes a custom adapter bracket for the OEM engine braces which normally makes this a drop-in kit. | INCLUDED IN THIS KIT |
|
1) 1/4 Turn Ball Valves 2) Custom brackets 3) U-Mounts for 7/8" Tube Braces |
CAD DRAWING |
| FRS/BRZ CAD DIMENSIONS (PDF) | INSTALLATION NOTES |
| The two separate tanks each get the Brace Adapter installed, and then both adapters capture the original factory brace tubing in the passenger side of the engine bay. The PCV tank normally gets mounted closer to the center of the engine bay, but it can be switched per the installer's preference since the tanks are separate assemblies. Hoses are then routed from the OCC fittings to the matching fittings on the engine side. | RECOMMENDED OPTIONS |
|
1) 1/4 Turn Ball Valves (Included) 2) Hose Kit supplies 3) Stock color choices: Satin Black, Glossy Black, Glossy Red, Dark Blue, Bare Brushed Aluminum. |
SAMPLE REFERENCE PICS |
|

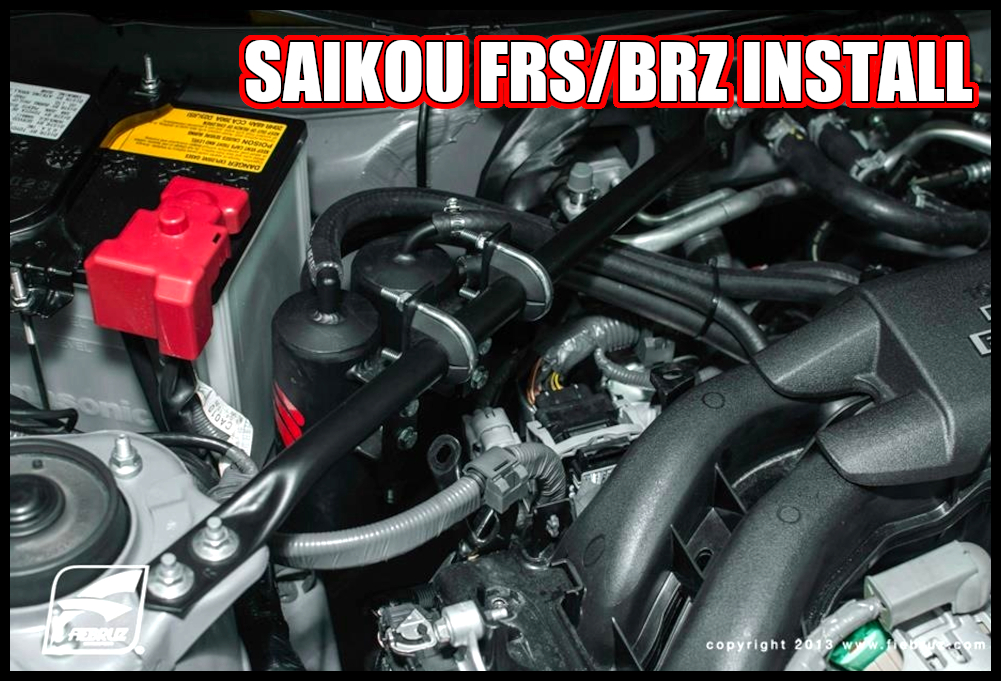

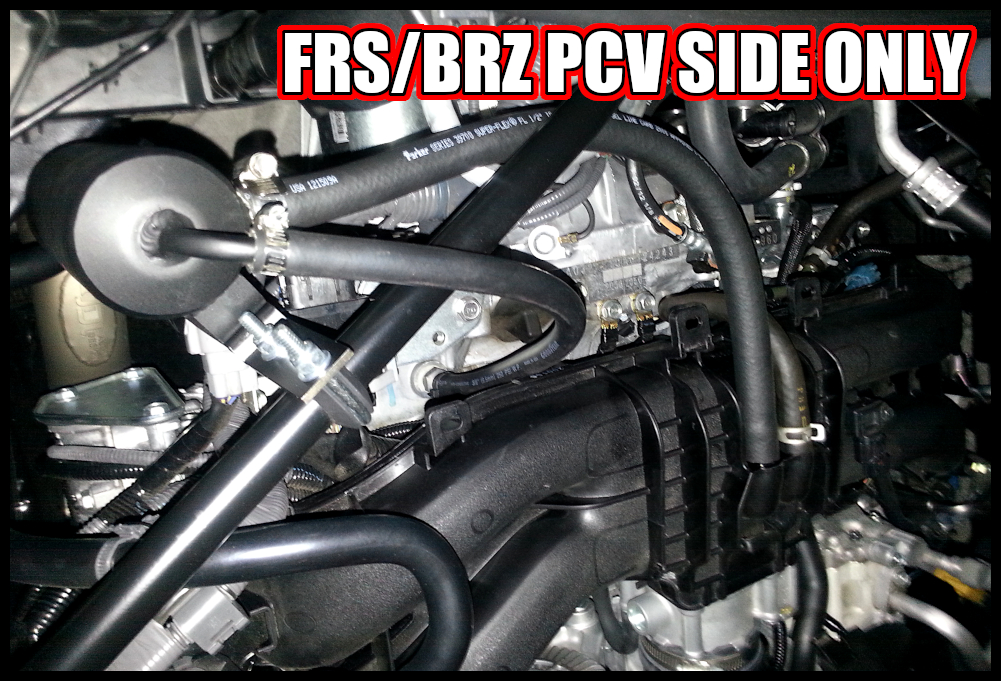

FRS/BRZ DUAL INSTALL PIC FRS/BRZ PCV ONLY PIC |
|
