S1-GEN38-S KIT
Home > Products > S1-GEN38-S KIT
| S1-GEN38-S KIT | |
|---|---|
| ROUTING TYPE | Closed Loop |
| BODY STYLE | Single Tank |
| CYLINDER SIZE | 2.5" OD x 6" TALL |
| TARGET VEHICLE | Genesis 3.8, Veloster, Kia |
| HOSE SIZES | 3/8" & 1/2" |
| KIT CATEGORY | Easy to Moderate |
| COST (plus postage) | $$ | GENERAL INFORMATION |
| The original S1-OCC with minor modifications to suit some popular vehicle applications like the Hyundai Genesis 3.8, Veloster, Sonata, Kia Optima, and others. Customized for PCV connections that have a smaller 3/8" valve cover PCV fitting, and then a larger 1/2" intake manifold return fitting. In kit form with popular options to make this a complete install and to make draining easy. A Universal application with the original internal baffle system. | INCLUDED IN THIS KIT |
|
1) 1/4 Turn Ball Valve. 2) Offset mounting clip & bolts. 3) 3ft of matched hose supplies & clamps. 4) Single Drain Extension kit w/ Ball valve. |
CAD DRAWING |
| DEFAULT S1-OCC CAD DIMENSIONS (PDF) | INSTALLATION NOTES |
| The tank can be mounted where it is most convenient for you. The 3ft hose supply is normally enough to reach most spots. And the drain extension will allow you to reach from underneath which is really nice in engine bays that are short on space. This makes draining an afterthought! | REFERENCE LINKS |
| Drain Extension Information | BLANK CONFIGURATION TEMPLATE |
| BLANK TEMPLATE IF NEEDED (PDF) | |

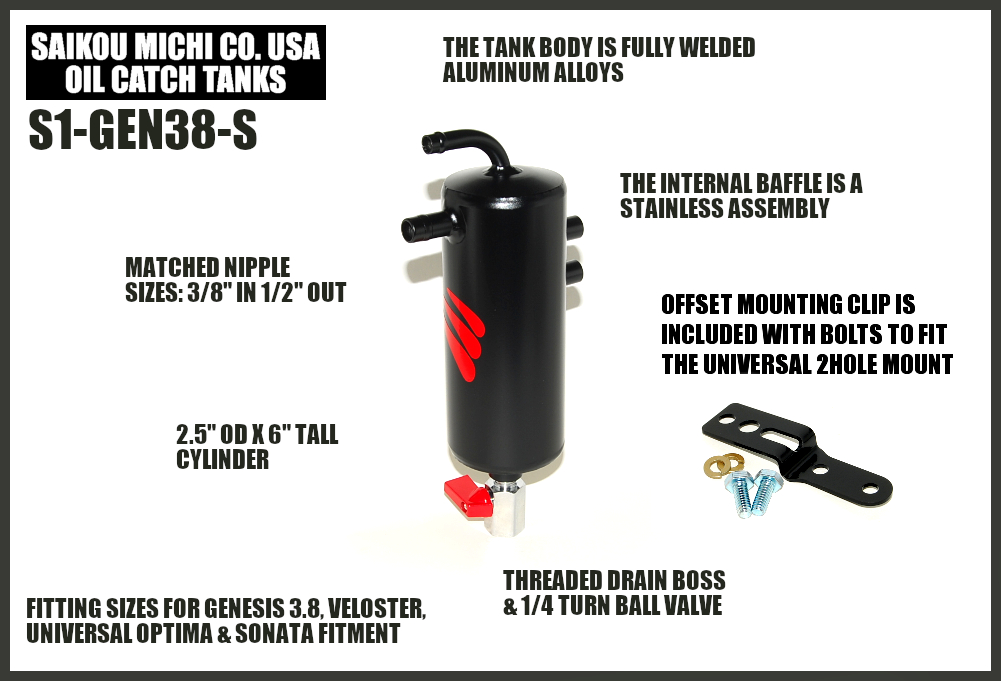

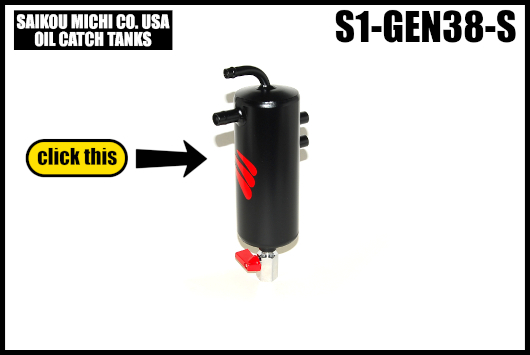

CLICK FOR FULLSIZE
INCLUDES
MOUNTING CLIP
INCLUDES
HOSE KIT
DRAIN EXT.
INCLUDED
DISCLAIMER:
All our products are simple filters and are not intended to modify the PCV system, this does not mean that local authorities will understand this. You are responsible for upholding local statues and keeping your vehicle legal. This product may be considered for "Offroad Use Only", please check your local statutes.
WARNING:
Working on any vehicle may be hazardous and result in injury. These products must be installed by a qualified technician. You must be qualified or seek the help of a professional mechanic. If you are not sure about how to connect this filter, have a professional mechanic perform the installation. Keep all hoses away from hot surfaces, if you are not sure of the routing, have a professional mechanic perform the installation. You are responsible for the safe and proper installation of this filter product.
