S1-MINI-2G-D
Home > Products > S1-MINI-2G-D
| S1-MINI-2G-D | |
|---|---|
| ROUTING TYPE | Closed Loop |
| BODY STYLE | Dual Tanks |
| CYLINDER SIZE | 2.5" OD x 6" TALL |
| TARGET VEHICLE | Mini Cooper N14 |
| HOSE SIZES | 3/4" 19MM ID |
| KIT CATEGORY | Moderate to Advanced |
| COST (plus postage) | $$ | GENERAL INFORMATION |

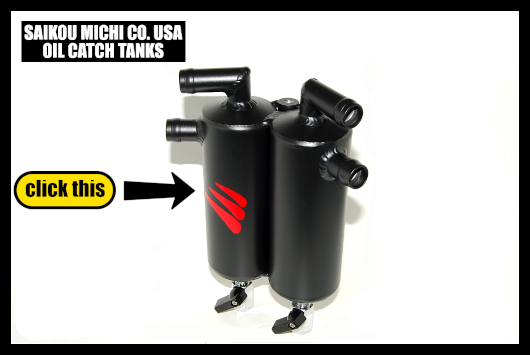

| This is a Dual tank configuration specific for the Mini Cooper R56 N14 platform. A very popular choice to reduce carbon buildup. Fully welded aluminum construction with internal stainless baffle assemblies to filter out blow-by and gunk. | INCLUDED IN THIS KIT |
| 1) 1/4 Turn Ball Valve drain assemblies. 2) L-clip & Flat Clip. |
CAD DRAWING |
| MINI DC3 WITH DIMENSIONS (PDF) | INSTALLATION NOTES |
| This Dual tank normally mounts in the corner of the engine bay, and will require extra hose supplies to bridge the connections. The MINI uses special OEM connectors for the PCV connection and Manifold Return port. This installation requires work above and below the engine. Accessories are available to help make this a complete kit. Both cylinders are internally baffled with stainless material assemblies to filter out blow-by and contaminants. | RECOMMENDED OPTIONS |
|
1) 1/4 Turn Ball Valves (Included) 2) Braided Hose kit & clamps & 2 OEM connectors 3) Drain Extensions 4) Stock color choices: Satin Black, Glossy Black, Glossy Red, Dark Blue, Bare Brushed Aluminum. |
|

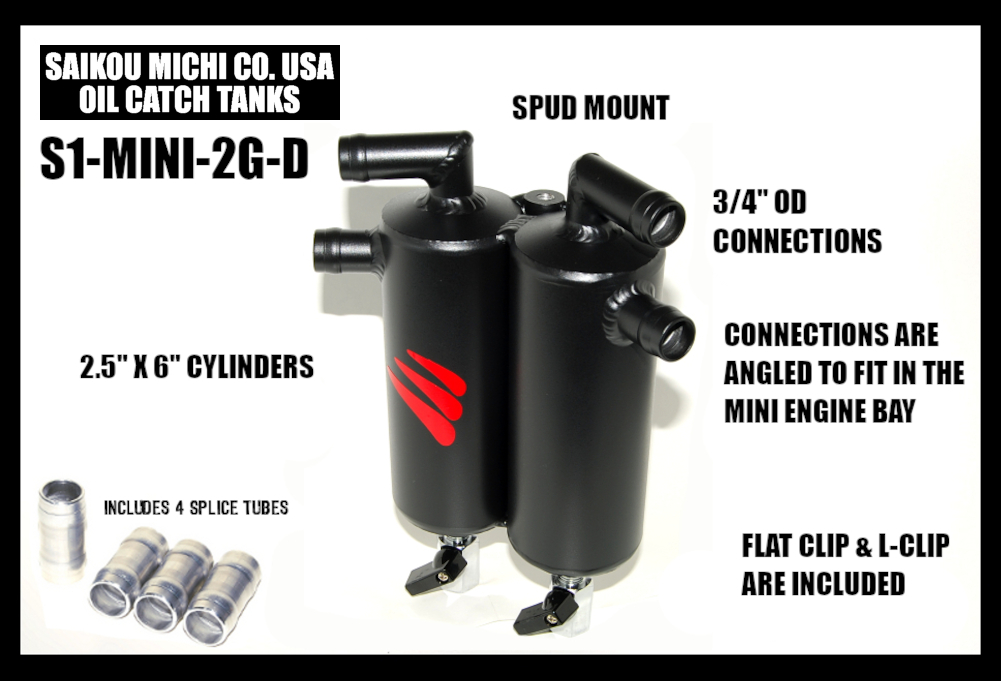

CLICK FOR FULLSIZE
INCLUDED
CLIPS
MOUNT
SPUD DETAIL
1/4 TURN
BALL VALVES
DISCLAIMER:
All our products are simple filters and are not intended to modify the PCV system, this does not mean that local authorities will understand this. You are responsible for upholding local statues and keeping your vehicle legal. This product may be considered for "Offroad Use Only", please check your local statutes.
WARNING:
Working on any vehicle may be hazardous and result in injury. These products must be installed by a qualified technician. You must be qualified or seek the help of a professional mechanic. If you are not sure about how to connect this filter, have a professional mechanic perform the installation. Keep all hoses away from hot surfaces, if you are not sure of the routing, have a professional mechanic perform the installation. You are responsible for the safe and proper installation of this filter product.
