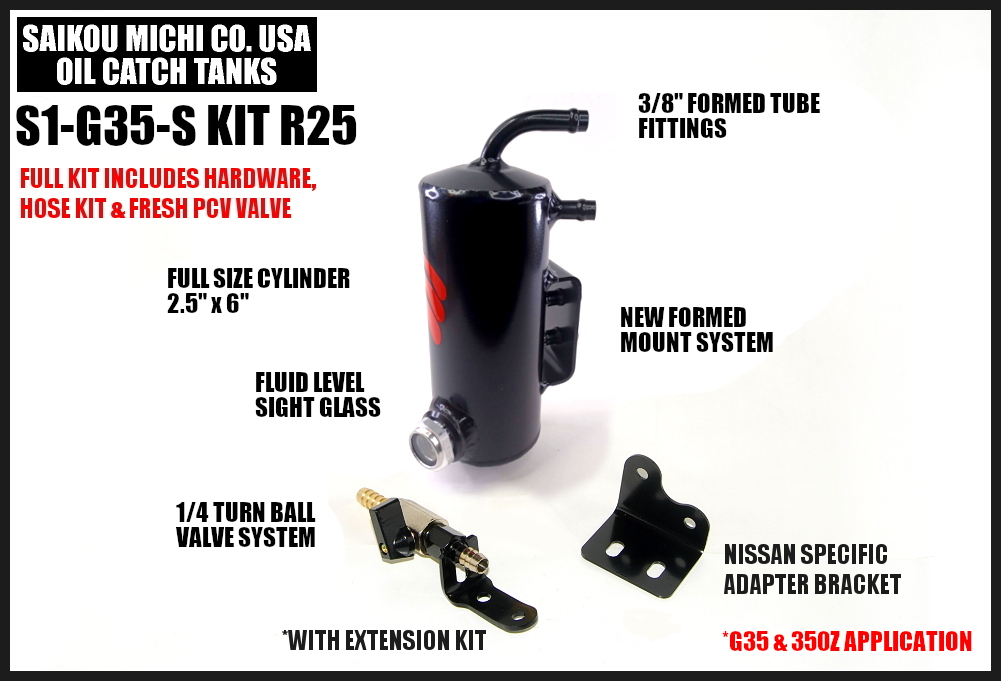

S1-G35-S KIT
| S1-G35-S KIT | |
|---|---|
| ROUTING TYPE | Closed Loop |
| BODY STYLE | Single Tank |
| CYLINDER SIZE | 2.5" OD x 6" TALL |
| TARGET VEHICLE | G35 VQ35DE |
| HOSE SIZES | 3/8" |
| KIT CATEGORY | Easy to Moderate |
| COST (plus postage) | $$ | GENERAL INFORMATION |
| This is the most popular style and size configured specifically for the Infiniti G35 w/ VQ35DE engine. Simple connections are made with standard hoses and clamps. The body is fully welded aluminum alloy. The internals hold a stainless baffle assembly below the Outlet to help condense fumes into a liquid. This model includes our most popular upgrades & accessories. | INCLUDED IN THIS KIT |
|
1) 1/4 Turn Ball Valve 2) Sight Tube 3) Drain Extension 4) Hoses & Clamps 5) G35 Bracket 6) New PCV Valve 7) Instructions |
|
| CAD DRAWING | |
| S1-G35-S DRAWING WITH DIMENSIONS (PDF) | INSTALLATION NOTES |
| For most installs, the valve cover connection is detoured into the top Inlet fitting, and then the hose continues from the side Outlet to its original destination. The intent is to add an OCC to the system, but not modifiy it. The hose will now include the new OCC to filter contaminants, but the routing will start and end at the original engine connections. This kit includes a Drain Extension kit to help make draining easier in tight engine bays. A New PCV valve is also include for optimal performance of your emission system. | POPULAR OPTIONS |
| This kit includes the most popular options, but you can still personalize the colors: 1) Stock color choices: Satin Black, Glossy Black, Glossy Red, Dark Blue, Bare Brushed Aluminum, and a few others are available. |
|
1/4 TURN
BALL VALVE
G35 CLIP
ADAPTER
2 HOLE
MOUNT STYLE
DISCLAIMER:
All our products are simple filters and are not intended to modify the PCV system, this does not mean that local authorities will understand this. You are responsible for upholding local statues and keeping your vehicle legal. This product may be considered for "Offroad Use Only", please check your local statutes.
WARNING:
Working on any vehicle may be hazardous and result in injury. These products must be installed by a qualified technician. You must be qualified or seek the help of a professional mechanic. If you are not sure about how to connect this filter, have a professional mechanic perform the installation. Keep all hoses away from hot surfaces, if you are not sure of the routing, have a professional mechanic perform the installation. You are responsible for the safe and proper installation of this filter product.
