SAIKOU MICHI CO. USA
S3-VTA-OCC BREATHER
| S3-VTA-OCC | |
|---|---|
| ROUTING TYPE | Open Loop |
| BODY STYLE | Single Tank |
| CYLINDER SIZE | 3" OD x 7" TALL |
| TARGET VEHICLE | Various, Universal Fit |
| HOSE SIZES (ID) | 3/8" - 1/2" - 5/8" - 3/4" |
| INSTALL DIFFICULTY | Easy to Moderate |
| COST | $ | GENERAL INFORMATION |

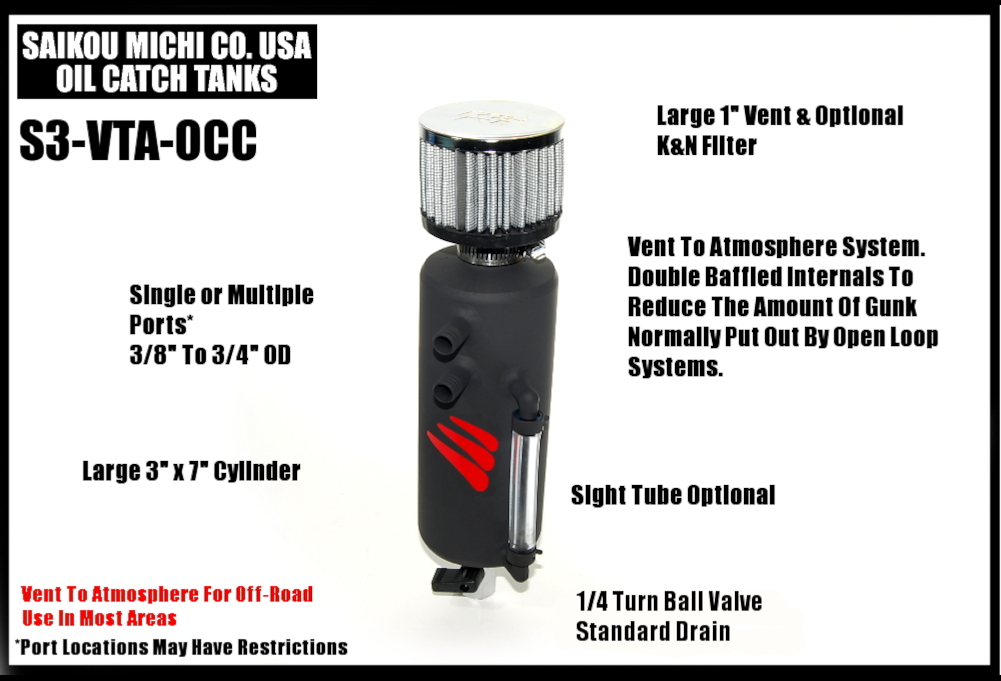

| This is the largest VENT TO ATMOSPHERE tank with excellent flow and plenty of volume. Simple connections are made with standard hoses and clamps. The body is fully welded aluminum alloy. The internals hold a stainless baffle assembly below the Outlet to help condense fumes into a liquid. This model may be ordered as shown or custom requests can be made to the configuration. | INCLUDED IN THIS KIT |
| 1) 1/4 Turn Ball Valve Drain assembly. 2) Offset mounting clip with bolts. |
CAD DRAWING |
| S3 VTA OCC DRAWING WITH DIMENSIONS (PDF) | INSTALLATION NOTES |
| For Universal installs, the valve cover connection(s) are detoured to one or two of the ports on the tank. Pressure and gases will be released through the tank. | POPULAR OPTIONS |
| For this Universal OCC, the options will depend on the install, but the most popular items are: 1) 1/4 Turn Ball Valve Drain (Included) 2) Drain Extension kit 3) Sight Tube assembly 4) Stock color choices: Satin Black, Glossy Black, Glossy Red, Glossy White, Bare Brushed Aluminum. |
BLANK SHOP SKETCH TEMPLATE |
| If you need to make notes for custom rotations, etc, you can download the blank template linked below. If you want to send us a copy, you may scan it, take a photo, or screen shot. S3 VTA OCC SHOP SKETCH TEMPLATE (PDF) |
|

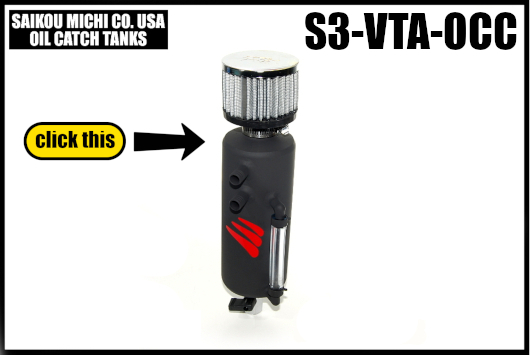

CLICK FOR FULLSIZE
1/4 TURN
BALL VALVE
OFFSET CLIP
INCLUDED
2 HOLE
MOUNT STYLE
DISCLAIMER:
All our products are simple filters and are not intended to modify the PCV system, this does not mean that local authorities will understand this. You are responsible for upholding local statues and keeping your vehicle legal. This product may be considered for "Offroad Use Only", please check your local statutes.
WARNING:
Working on any vehicle may be hazardous and result in injury. These products must be installed by a qualified technician. You must be qualified or seek the help of a professional mechanic. If you are not sure about how to connect this filter, have a professional mechanic perform the installation. Keep all hoses away from hot surfaces, if you are not sure of the routing, have a professional mechanic perform the installation. You are responsible for the safe and proper installation of this filter product.
